JD-G032 alta vi resistentia impulsum IP66 IK09 Led Street
PREV：JD-G031 super resistentia corrosionis IP66 IK09 Led Street
DEINDE：JD-G033 alta vi resistentia impulsum IP66 IK09 Led Street

JD-G032 alta vi resistentia impulsum IP66 IK09 Led Street

Materia principalis usus aluminii in altum viribus dejectis materia, superficies anit-canescens
electrostatic imbre Processing, super resistentia ad corrosionem.
Pc diffundens, altum robur impulsum resistit.
Input intentione: AC100-240V, 50/60Hz;
5-annus warantizatio;
IP66,IK09;
Philips Lumiled 5050 vel 3030 Led
Philips Meanwell, Inventronicis driver
Nobis loquere
  • JD-G032 alta vi resistentia impulsum IP66 IK09 Led Street
  • JD-G032 alta vi resistentia impulsum IP66 IK09 Led Street

Product Details:

Product Code JD-G032A JD-G032B JD-G032C
Electrica current 75mA 100mA 110mA
DUXERIT Quantitas 16pcs 5050 24pcs 5050 36pcs 5050
Rate Power 30W 60W 100W
Color Temperature 6500/4000/3000K 6500/4000/3000K 6500/4000/3000K
Luminous Flux 2700Im/4000K 5400Im/4000K 6000Im/4000K
Input intentione AC100-240V AC100-240V AC100-240V
Frequentia Range 50/60Hz 50/60Hz 50/60Hz
Color Temperature RA75 RA75 RA75
Temperatus operandi conditio -40℃  -  50℃ -40℃  -  50℃ -40℃  -  50℃
Umor conditio working 20%-90% 20%-90% 20%-90%
DUXERIT tempus vitae 70000h * * * 70000h 70000h
Protestatio Gradus IP66 IP66 IP66
Installation Pipe Dia Φ76mm Φ76mm Φ76mm
Altitudo institutionem 3-5m 4-6m 7-9m
Net Pondus 7.9kg 8.46kg 8.5kg
Crassa Pondus 9.1kg 9.66kg 10.5kg

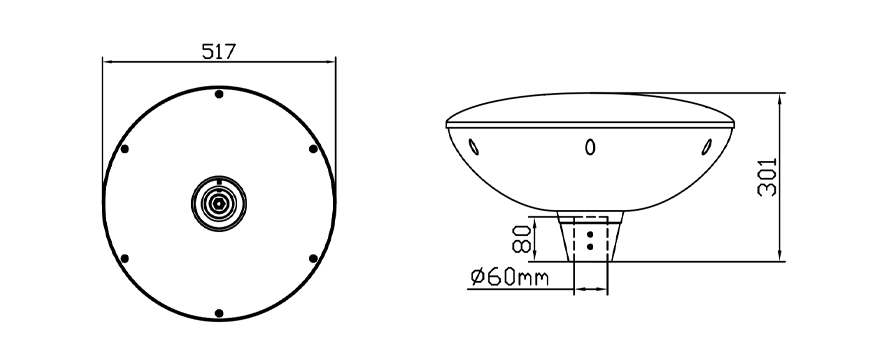

Product Size 517*517*300mm 517*517*300mm 517*517*300mm
Stipare Size
