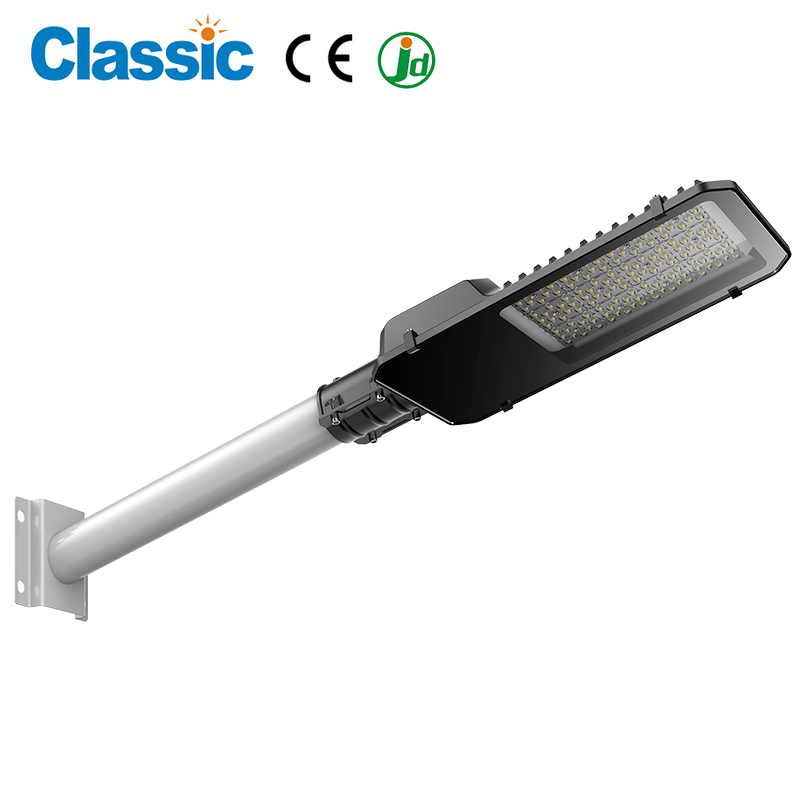

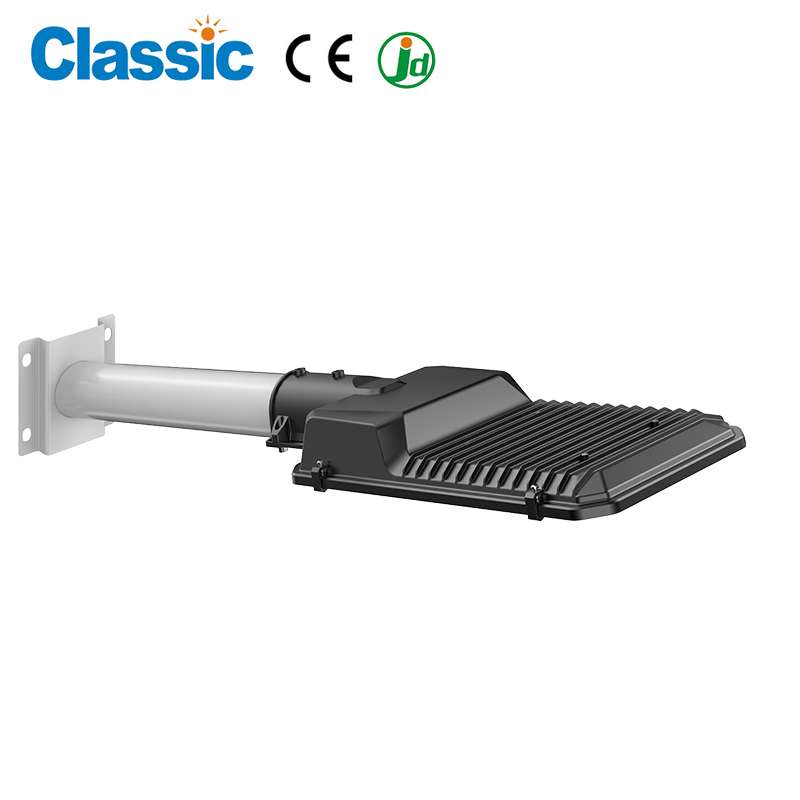

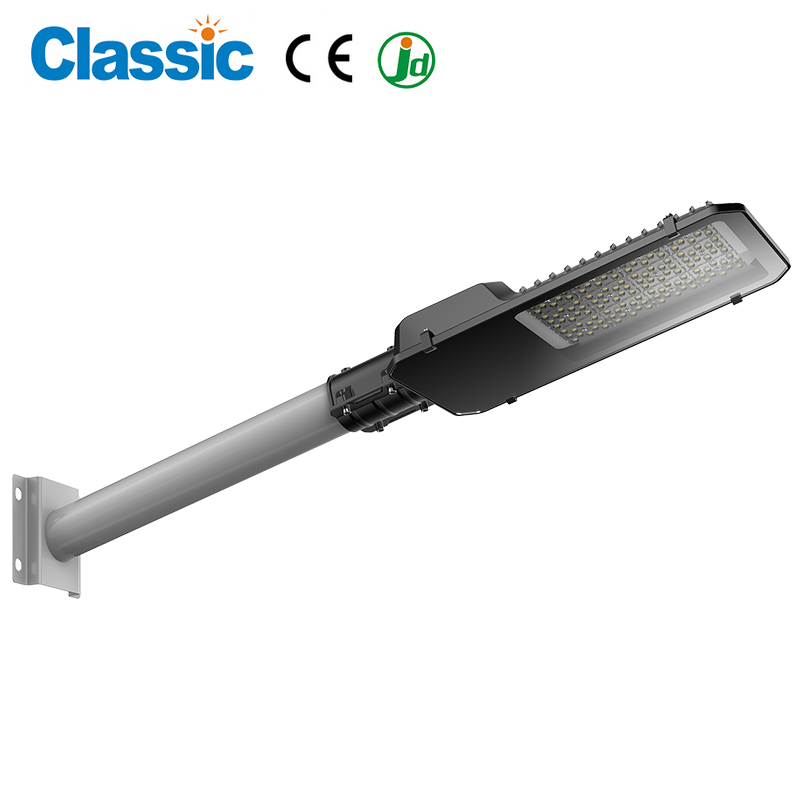

JD-1072 superficies anti-canus electrostatic Led platea lucis
PREV：Nullus prior articulum
DEINDE：JD-1071 aluminium die mittentes materiam in lucem ducentes

JD-1072 superficies anti-canus electrostatic Led platea lucis

1.LED/Philippus Lumiled (V)L vel 3030
Exactoris: Philippus, Interea Inventronics
2.Aluminium mori materiam iactandi, superficies  anit-electronica-senilis
3.spray processus, super resistentia ad corrosionem.
4.PMMA len operculum, vitrum
5.Input Voltage: AC100-240V, 50/60Hz, IP65, Ik07
6.Windy area: CXV 2
7.Stainless ferro ANISOCYCLUM
8.5 annis warranty
Nobis loquere
  • JD-1072 superficies anti-canus electrostatic Led platea lucis
  • JD-1072 superficies anti-canus electrostatic Led platea lucis
  • JD-1072 superficies anti-canus electrostatic Led platea lucis
  • JD-1072 superficies anti-canus electrostatic Led platea lucis

Product Details:

Product Code JD-1072A JD-1072B JD-1072C JD-1072D JD-1072E
DUXERIT Current (mA) 100mA 3030/75mA 5050 88mA 3030/67mA 5050 72mA 3030/58mA 5050 80mA 3030/60mA 5050 78mA 3030/63mA 5050
DUXERIT Quantitas 48pcs 3030/16pcs 5050 72pcs 3030/24pcs 5050 108pcs 3030/36pcs 5050 120pcs 3030/40pcs 5050 144pcs 3030/48pcs 5050
Rate Power 30W 40W 50W 60W 70W
Color Temperature 6500/4000/3000K 6500/4000/3000K 6500/4000/3000K 6500/4000/3000K 6500/4000/3000K
Luminous Flux 130LM/W 3030  140LM/W 5050 130LM/W 3030  140LM/W 5050 130LM/W 3030  140LM/W 5050 130LM/W 3030  140LM/W 5050 150LUM/W
Input intentione AC100-240V AC100-240V AC100-240V AC100-240V AC100-240V
Frequentia Range 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Color Temperature RA75 RA75 RA75 RA75 RA75
Temperatus operandi conditio -40℃  -  50℃ -40℃  -  50℃ -40℃  -  50℃ -40℃  -  50℃ -40℃  -  50℃
humiditas operantes conditio 20%-90% 20%-90% 20%-90% 20%-90% 20%-90%
DUXERIT tempus vitae 70000h * * * * * 70000h 70000h 70000h 70000h
Protestatio Gradus IP65 IP65 IP65 IP65 IP65
Installation Pipe Dia Φ60mm Φ60mm Φ60mm Φ60mm Φ60mm
Altitudo institutionem 3-4m 4-5m 5-6m 6-7m 7-8m
Net Pondus 1.52kg 1.62kg 1.92kg 2.12kg 2.62Kg
Crassa Pondus 2.52kg 2.62kg 2.92kg 3.12kg 3.62kg

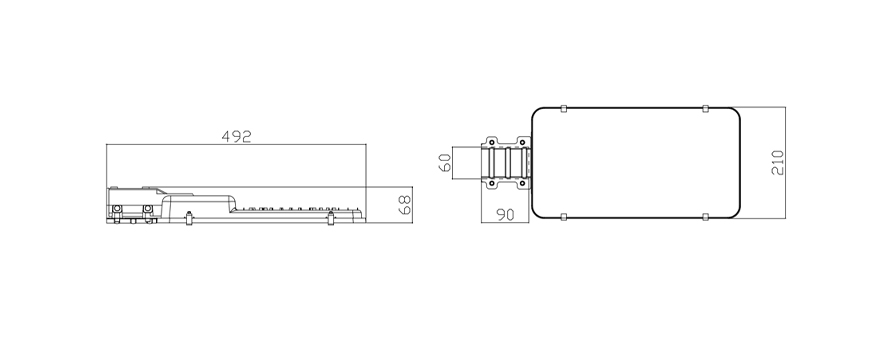

Product Size 492x210x68mm 492x210x68mm 492x210x68mm 492x210x68mm 492x210x68mm
stipare Location 530x265x135mm 530x265x135mm 530x265x135mm 530x265x135mm 530x265x135mm
