JD-S1037 PMMA modularis lens optical design IK08
PREV：JD-1057 superficies anit-age electrostatic
DEINDE：JD-G008 superficies electrostatic anti-aevum lucis hortum induxit

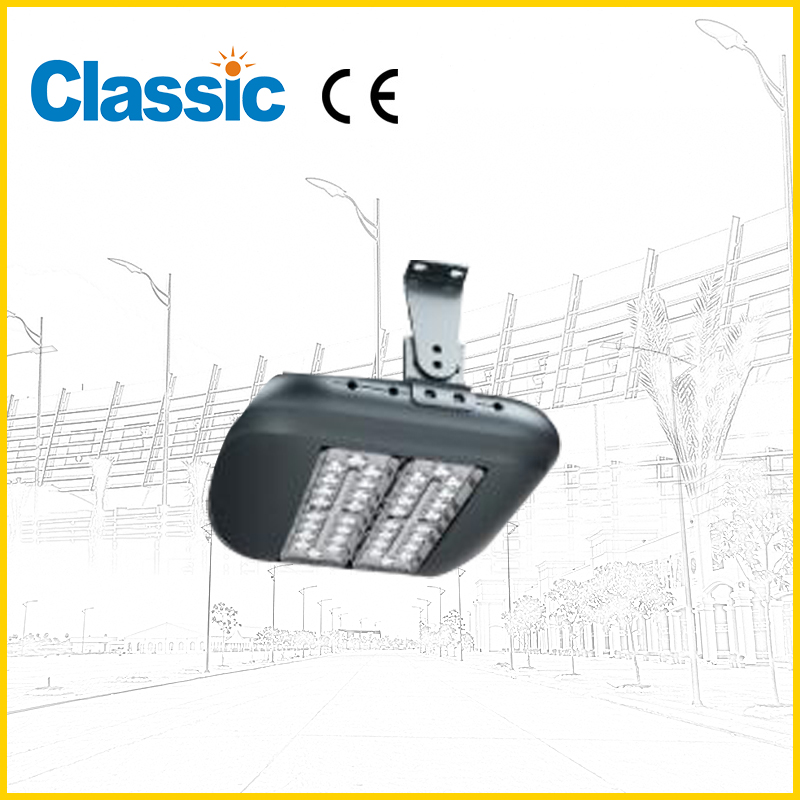

JD-S1037 PMMA modularis lens optical design IK08

1.60W,100W,120W cuniculum ducitur lumen.

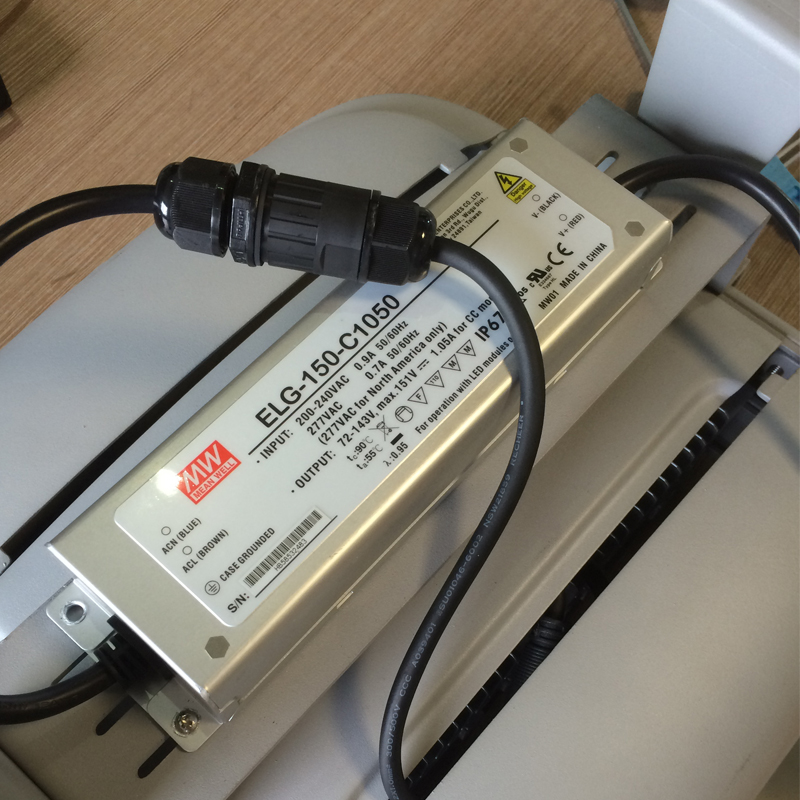

2.2 PCs moduli (Philippus Luxeon 3030 duxit), Interea auriga.

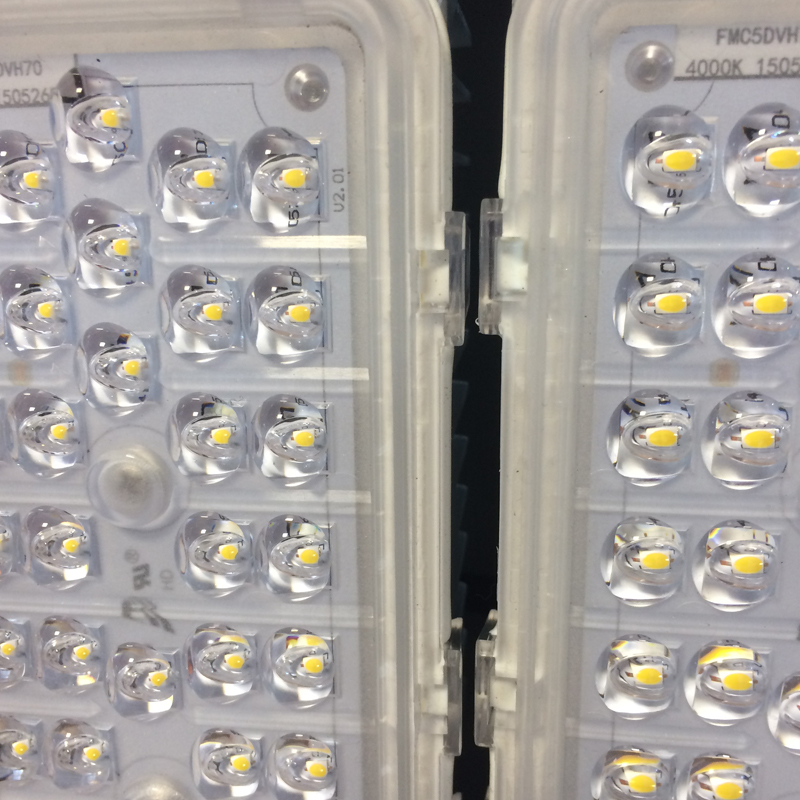

3.PMMA designatio lentis optica modularis.
4. Potest addere et reducere modulorum 1-5 PCs. Apta 30-300W.

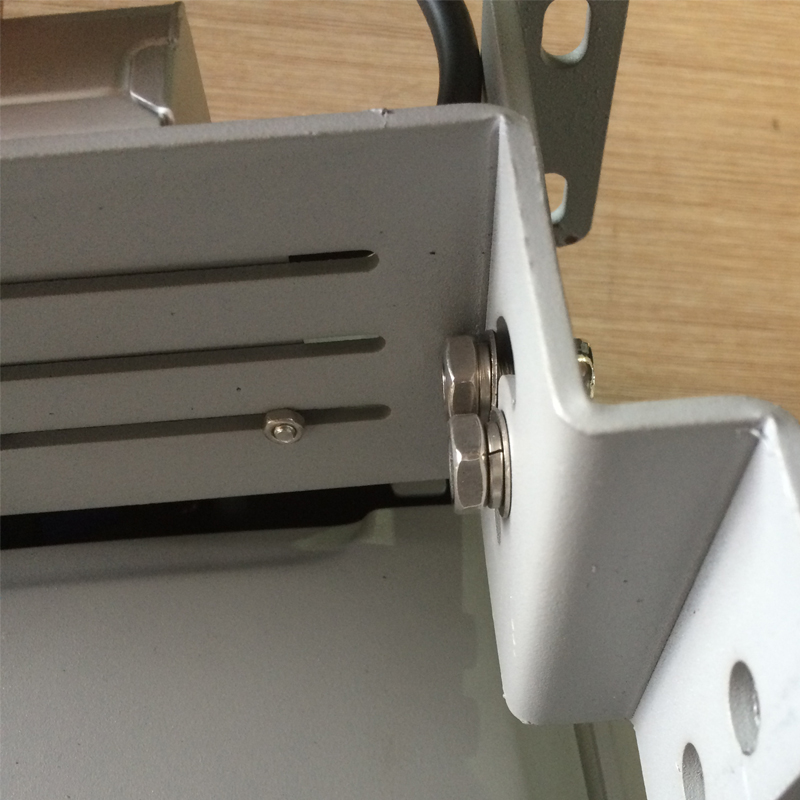

5. Altum intensum corpus aluminium iacta moriuntur. IK08
6.Protection gradus: OPtical IP68, Coegi department IP66 "
7.Auto SWITCH, Surge protector et photocell ad choice.
Nobis loquere
  • JD-S1037 PMMA modularis lens optical design IK08
  • JD-S1037 PMMA modularis lens optical design IK08
  • JD-S1037 PMMA modularis lens optical design IK08
  • JD-S1037 PMMA modularis lens optical design IK08
  • JD-S1037 PMMA modularis lens optical design IK08

Product Details:

Product Code JD-S1037B JD-S1037C JD-S1037D
DUXERIT Quantitas 56pcs 5050/126pcs 3030 84pcs 5050/189pcs 3030 112pcs 5050/252pcs 3030
Rate Power 120W 180W 240W
DUXERIT Current (mA) 86mA 5050/150mA 3030 86mA 5050/150mA 3030 86mA 5050/150mA 3030
Color Temperature 6500/4000/3000K 6500/4000/3000K 6500/4000/3000K
Lumen EER 165lm/w(5050)
130lm/w(3030) 		165lm/w(5050)
130lm/w(3030) 		165lm/w(5050)
130lm/w(3030)
Input intentione AC100-277V AC100-277V AC100-277V
Frequentia Range 50/60Hz 50/60Hz 50/60Hz
Color Temperature RA75 RA75 RA75
Temperatus operandi conditio -40 ℃ -  50 ℃ -40 ℃ -  50 ℃ -40 ℃ -  50 ℃
humiditas operantes conditio 20%-90% 20%-90% 20%-90%
DUXERIT tempus vitae 70000h * * * 70000h 70000h
Protestatio Gradus IP66 IP66 IP66
PF 0.92 0.92 0.92
Net Pondus 6.6 Kg 7.74 Kg 8.9 Kg
Crassa Pondus 7.6 Kg 8.8 Kg 10.0 Kg

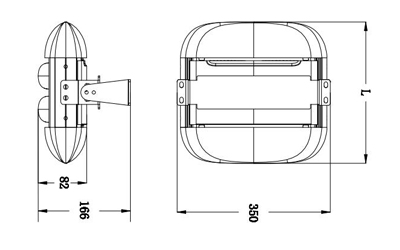

Product Size 324* 350* 200mm 400*350*200mm 476*350*200mm
stipare Location 345*370*160mm 420*370* 160mm 498*370* 160mm
