JD-1071 superficies anit-senes electrostatic Ik08 Led via lucis
PREV：JD-1072 super resistentia ad corrosionem in via lucis
DEINDE：JD-G030 altae vires impulsum resistentia induxit Street lux

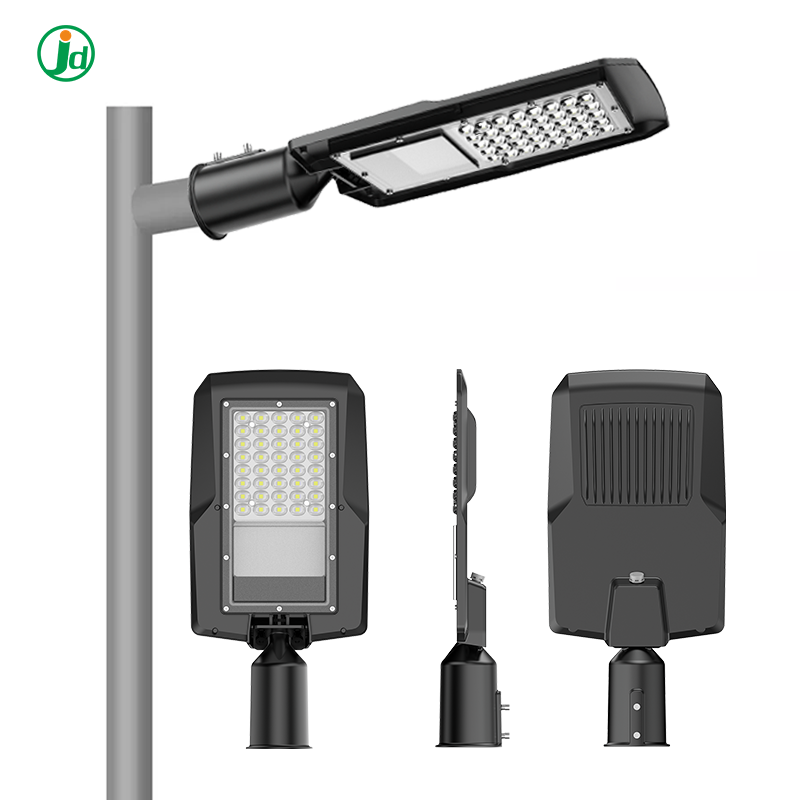

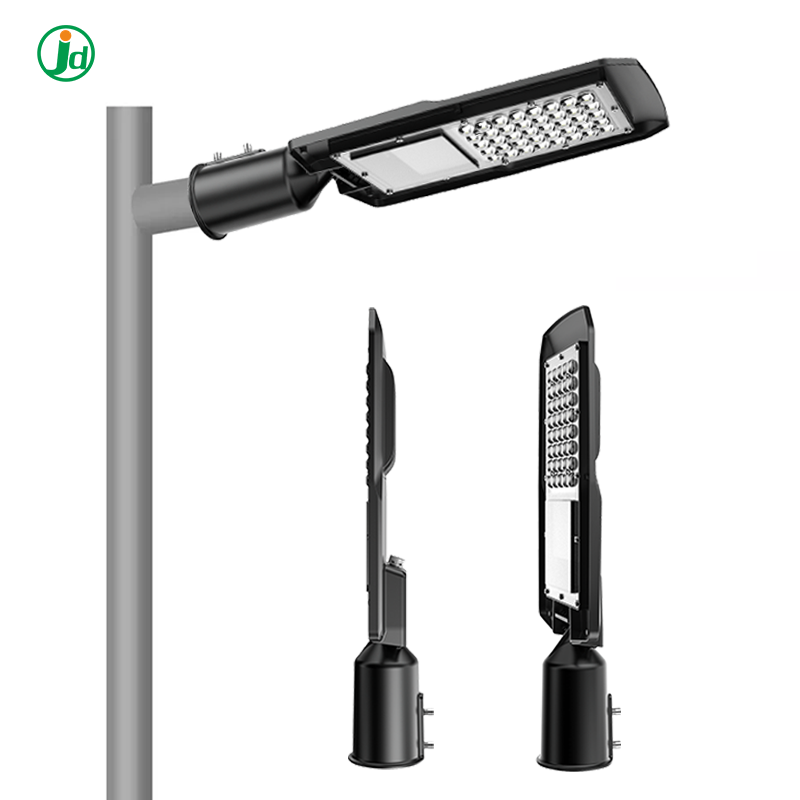

JD-1071 superficies anit-senes electrostatic Ik08 Led via lucis

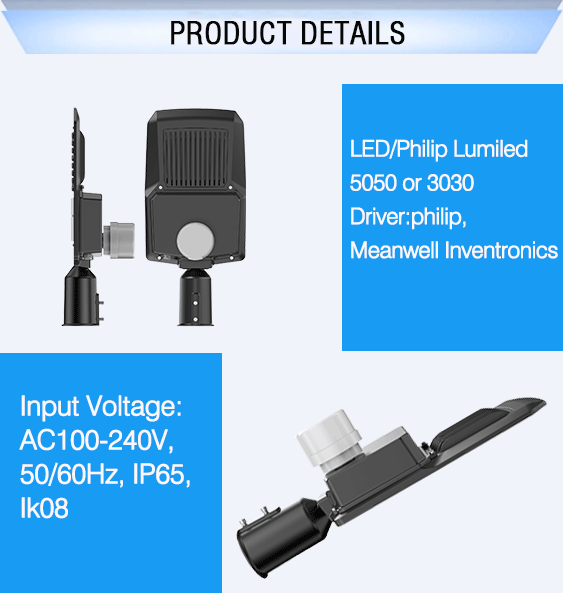

1.LED/Philippus Lumiled (V)L vel 3030
Exactoris: Philippus, Interea Inventronics

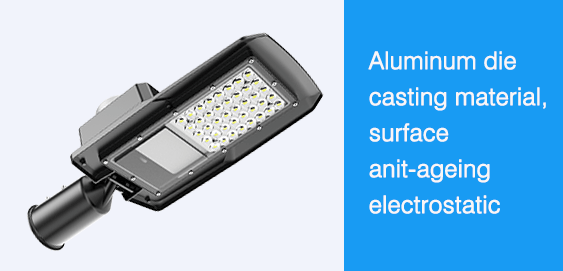

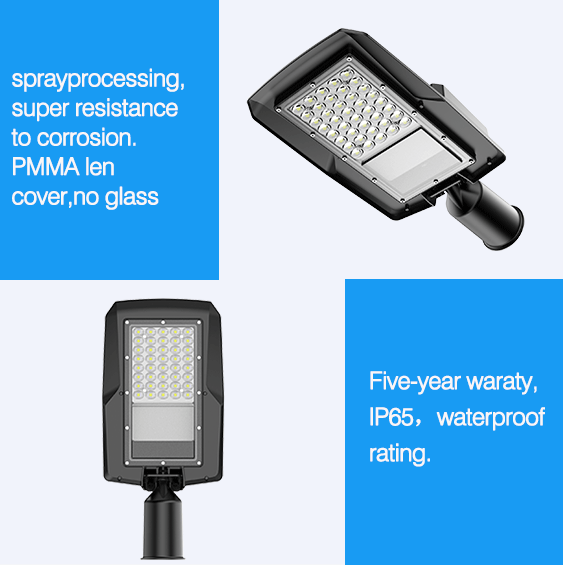

2.Aluminium mori fundens materiam, superficies electrostatic anit-senescentis
3.spray processus, super resistentia ad corrosionem.
4.PMMA len operculum, non vitrum
5.Input Voltage: AC100-240V, 50/60Hz, IP65, Ik08
6.Windy area: CXV 2
7.Stainless ferro ANISOCYCLUM
8.5 annis warranty
Nobis loquere
  • JD-1071 superficies anit-senes electrostatic Ik08 Led via lucis
  • JD-1071 superficies anit-senes electrostatic Ik08 Led via lucis
  • JD-1071 superficies anit-senes electrostatic Ik08 Led via lucis
  • JD-1071 superficies anit-senes electrostatic Ik08 Led via lucis
  • JD-1071 superficies anit-senes electrostatic Ik08 Led via lucis
  • JD-1071 superficies anit-senes electrostatic Ik08 Led via lucis
  • JD-1071 superficies anit-senes electrostatic Ik08 Led via lucis

Product Details:



Product Code JD-1071A JD1071A-XX JD-1071B JD-1071B-XX JD-1071C JD-1071C-XX
DUXERIT Current (mA) 83mA 83mA 91mA 91mA 110mA 110mA
DUXERIT Quantitas 40pcs 5050/160pcs 3030 40pcs 5050/160pcs 3030 72pcs 5050/ 288pcs 3030 72pcs 5050/ 288pcs 3030 98pcs 5050/392pcs 3030 98pcs 5050/392pcs 3030
Rate Power 100W 100W 150W 150W 200W 200W
Color Temperature 6500/4000/3000K 6500/4000/3000K 6500/4000/3000K 6500/4000/3000K 6500/4000/3000K 6500/4000/3000K
Luminous Flux 150LUM/W 100LUM/W 150LUM/W 100LUM/W 150LUM/W 100LUM/W
Input intentione AC100-240V AC100-240V AC100-240V AC100-240V AC100-240V AC100-240V
Frequentia Range 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Color Temperature RA75 RA75 RA75 RA75 RA75 RA75
Temperatus operandi conditio -40 ℃ -  50 ℃ -40 ℃ -  50 ℃ -40 ℃ -  50 ℃ -40 ℃ -  50 ℃ -40 ℃ -  50 ℃ -40 ℃ -  50 ℃
humiditas operantes conditio 20%-90% 20%-90% 20%-90% 20%-90% 20%-90% 20%-90%
DUXERIT tempus vitae 70000h * * * * * * 70000h 70000h 70000h 70000h 70000h
Protestatio Gradus IP65 IP65 IP65 IP65 IP65 IP65
Installation Pipe Dia Φ48/Φ60mm Φ48/Φ60mm Φ48/Φ60mm Φ48/Φ60mm Φ48/Φ60mm Φ48/Φ60mm
Altitudo institutionem 2-8m 2-8m 8-11m 8-11m 11-12m 11-12m
Net Pondus 1.8KG 1.3KG 2.8KG 1.8KG 3.8KG 2.6KG
Crassa Pondus 2.2KG 1.4KG 3.3KG 2.3KG 4.2KG 3.1KG

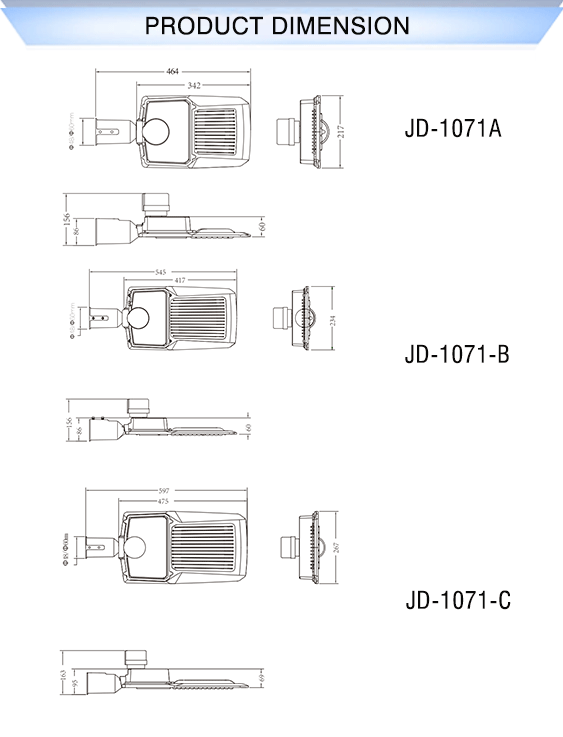

Product Size 464*217*86mm 464*217*81mm 546*234*86mm 545*234*81mm 597* 267*95mm 597*267*81mm
stipare Location 580*340*200mm 580*340*200mm 670* 360* 200mm 670* 360* 200mm 720*380*220mm 720*380*200mm
