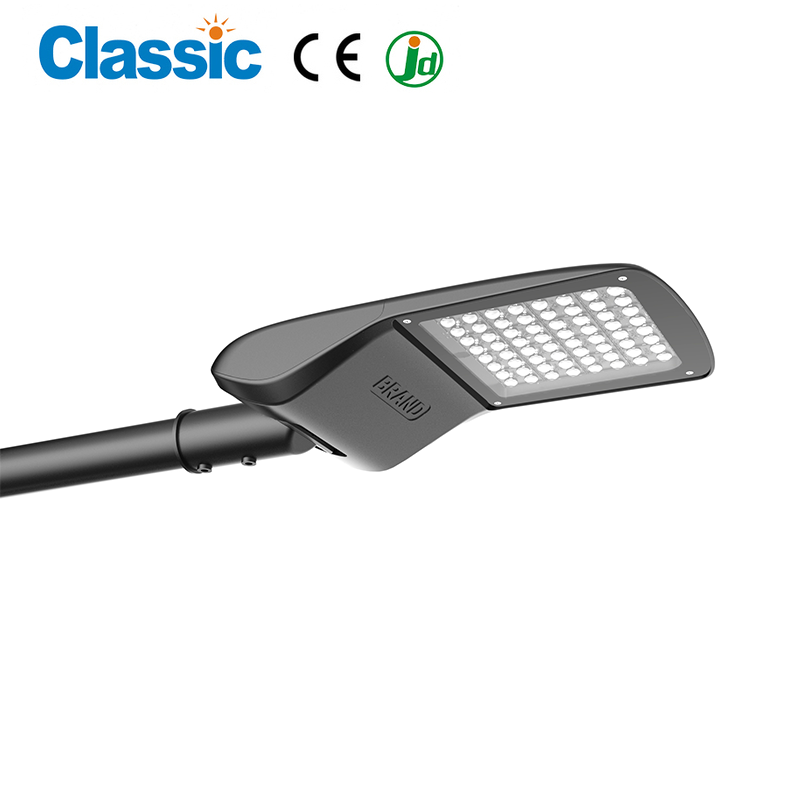

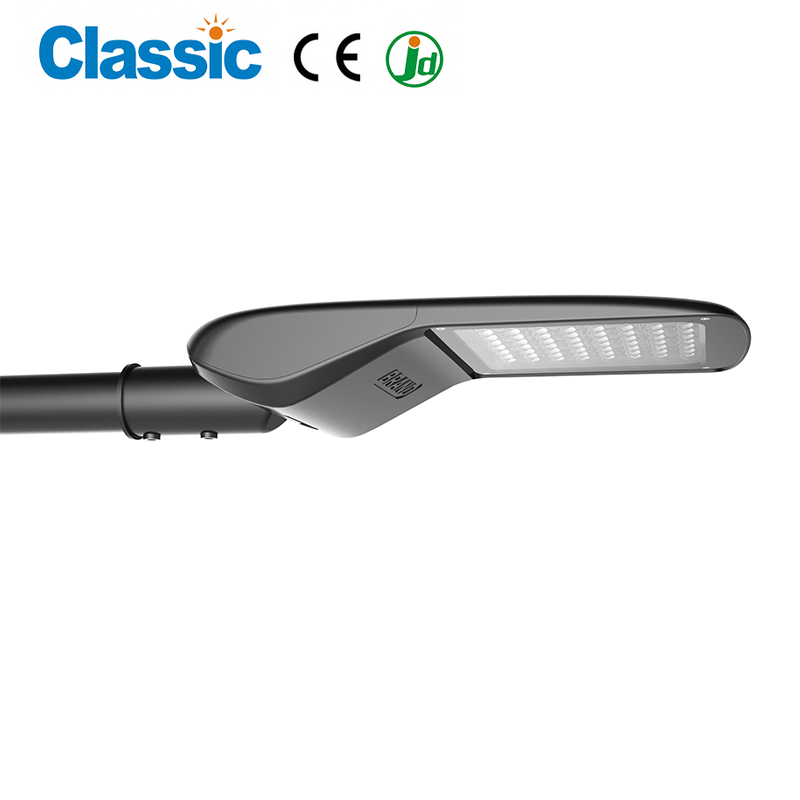

JD-1053 superficies anti-canus electrostatic Led platea lucis
PREV：JD-1058 super resistentia ad corrosionem in lucem ductam Street
DEINDE：JD-1052 altissimum intensionem corporis iacta Aluminium IK08 in lucem ductam

JD-1053 superficies anti-canus electrostatic Led platea lucis

1. Modus formarum species, lux facta est ars ingenua, Integra theo

environment perfecte, to make it as top project.

2.Used in altum viribus aluminium mori mittentes materiam, superficies anit-senescentis electrostatice

imbre processus, super repugnantiam corrosionem.

3.Hight tranparent Temperedglass

4.Input Voltage: AC100-240V, 50/60Hz, IP66, Ik09

5.Horizontal institutionem: 10~ -10° adjustable

6.Vertical installation: 10~ -10° Populus Novifacta

7.Different genera lens ad arbitrium

8.Windy area, parva magnitudine, CCCV

media magnitudine: CDL

Parce partes electionis

10 kv/20kv SPD

0-10v dimming exactoris

Auto switch

Nema nervum

9.5 annorum warranty

Nobis loquere
  • JD-1053 superficies anti-canus electrostatic Led platea lucis
  • JD-1053 superficies anti-canus electrostatic Led platea lucis

Product Details:

1280ba18a3b7b4d963be1765cec591d2_1
JD-1053A JD-1053B JD-1053C JD-1053D JD-1053E JD-1053F
0.6A 5050/0.8A 3030 0.8A 5050/1.05A 3030 1.05A 5050/1.3A 3030 1.3A 5050/1.6A 3030 1.5A 5050/1.88A 3030 2A 5050/2.7A 3030
75mA 5050/100mA 3030 67mA 5050/88mA 3030 58mA 5050/72mA 3030 65mA 5050/80mA 3030 63mA 5050/78mA 3030 63mA 5050/84mA 3030
16pcs 5050/48pcs 3030 24pcs 5050/72pcs 3030 36pcs 5050/108pcs 3030 40pcs 5050/120pcs 3030 48pcs 5050/144pcs 3030 64pcs 5050/192pcs 3030
30W 40W 50W 60W 70W 100W
6500/4000/3000K 6500/4000/3000K 6500/4000/3000K 6500/4000/3000K 6500/4000/3000K 6500/4000/3000K
150lm/w(5050)
140lm/w(3030) 		150lm/w(5050)
140lm/w(3030) 		150lm/w(5050)
140lm/w(3030) 		150lm/w(5050)
140lm/w(3030) 		150lm/w(5050)
140lm/w(3030) 		150lm/w(5050)
140lm/w(3030)
AC100-277V AC100-277V AC100-277V AC100-277V AC100-277V AC100-277V
50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz
RA75 RA75 RA75 RA75 RA75 RA75
-40 ℃ -  50 ℃ -40 ℃ -  50 ℃ -40 ℃ -  50 ℃ -40 ℃ -  50 ℃ -40 ℃ -  50 ℃ -40 ℃ -  50 ℃
20%-90% 20%-90% 20%-90% 20%-90% 20%-90% 20%-90%
70000h * * * * * * 70000h 70000h 70000h 70000h 70000h
IP66 IP66 IP66 IP66 IP66 IP66
Φ60mm/ Φ42mm Φ60mm/ Φ42mm Φ60mm/ Φ42mm Φ60mm/ Φ42mm Φ60mm/ Φ42mm Φ60mm/ Φ42mm
4-6m 4-6m 4-6m 6-8m 6-8m 8-10m
6.0kg 6.0kg 6.1kg 8.0kg 8.0kg 8.2kg
7.0kg 7.0kg 7.1kg 9.5kg 9.5kg 9.7kg
550x230x115mm 550x230x115mm 550x230x115mm 617*263*119mm 617*263*119mm 617*263*119mm
600*270*160mm 600*270*160mm 600*270*160mm 660*295*165mm 660*295*165mm 660*295*165mm
