• Alta vis aluminii moriuntur materiam mittentes, superficies anit-senescentes electrostatic imbre processus, super resistentia ad corrosionem.
• vitreum operculum, altum robur, ictum resistentia.
• Input Voltage: AC110-277V, 50/60HZ, IP65, Ik09
• Bracket: 60mm
• Insulation genus II
• parce partes electionis
10kv/20kv SPD
0-10v dimming exactoris Nema socket
| Product Code | JD-1058A | JD1058B | JD-1058C | JD-1058D | JD-1058E | JD-1058F |
| Electric Current(mA) | 1050mA | 1050mA | 1300mA | 1800mA | 1400mA | 1900mA |
| DUXERIT Quantitas | 16pcs CREEXTE | 24pcs CREEXTE | 36pcs CREEXTE | 40pcs CREEXTE | 48pcs CREEXTE | 64pcs CREEXTE |
| Rated potestas | 30W | 40W | 50W | 60W | 70W | 100W |
| Color Temperature | 6500/4000K/3000K | 6500/4000K/3000K | 6500/4000K/3000K | >500/4000K/3000K | 6500/4000K/3000K | 6500/4000K/3000K |
| Luminous Flux | 130Lum/W | 130Lum/W | 130Lum/W | 130Lum/W | 130Lum/W | 130Lum/W |
| Input intentione | AC100-277V | AC100-277V | AC100-277V | AC100-277V | AC100-277V | AC100-277V |
| Frequentia Range | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ |
| CRI | RA75 | RA75 | RA75 | RA75 | RA75 | RA75 |
| Temperatus operandi conditio | -40°C — 45°C | -40°C — 45°C | -40°C -45°C | -40°C — 45°C | -40°C -45°C | -40°C — 45°C |
| Humilitas operantes conditio | 20%-90% | 20%-90% | 20%-90% | 20%-90% | 20%-90% | 20%-90% |
| DUXERIT vita | 70000h * * * * * * | 70000h | 70000h | 70000h | 70000h | 70000h |
| Praesidium Gradus | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 |
| Installation Pipe Dia | Φ76mm | Φ76mm | Φ76mm | Φ76mm | Φ76mm | Φ76mm |
| Altitudo institutionem | 3-5m | 3-5m | 3-5m | 3-5m | 3-5m | 3-5m |
| Net Pondus | 4Kq | 4 Kg | 4 Kg | 5Kq | 5 Kg | 5Kq |
| Crassa Pondus | 4.5 Kg | 4.5Kg | 4.5 Kg | 5.5 Kg | 5.5Kg | 5.5 Kg |

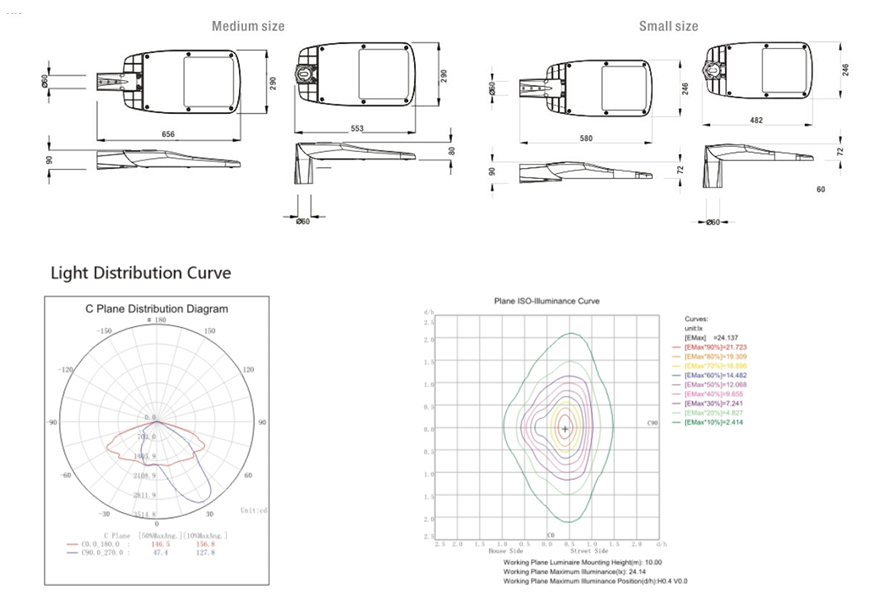

| Product Size | 580* 246* 90mm | 580* 246* 90mm | 580* 246* 90mm | 656*290*90mm | 656*290*90mm | 656*290*90mm |
| stipare Location | 600* 270" 20mm | 600*270*120mm | 600*270*120mm | 680*310* 120mm | 680*310* 120mm | 680*310* 120mm |
Societas CE, Rohs testimoniales. Fortis QC turma laborat in productis lineis secundum ad SO9001-2000 ratio qualitatis imperium.
